210 TO 420 BAR / 3000 TO 6000 PSI
Inner Tube : Polyester elastomer

ph395 AIR BREATHING HOSE 6000PSI

  • Reniforcement : One braid of steel wire plus one or two braids of synthetic yarn.
  • Cover: Polyurethane-Black- Pin Pricked White ink-jet branding

Applications:

Air Compressors, mobile and stationary units used for filling breathing air cylinders. Transfer of air from a containerized breathing air cascade systems to various locations on land rigs and offshore rigs, where there is potential exposure to hazardous gases in the environment.

Temperature Range:

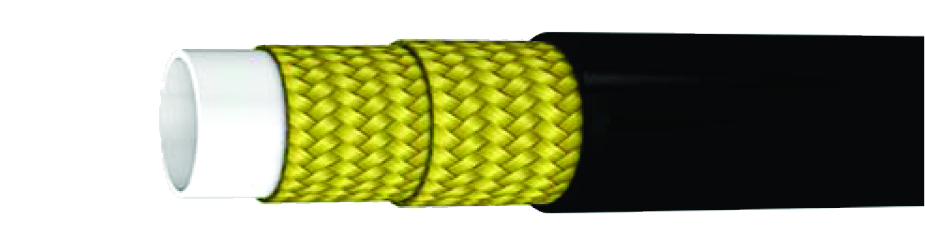

Hose Image

Continuous: -40° C to +80° C

Item Specifications

ITEM CODE DASH SIZE DN ID (inch/mm)
OD (inch/mm)
WP (psi/bar)
BP (psi/bar)
BR/r (inch/mm)
ID
OD
WP
BP
BR/r
inch mm inch mm psi bar psi bar inch mm g/m
ph395-03 -03 05 3/16 4.8 0.375 9.5 6000 415 24000 1660 1.2 30 67
9H395-04 -04 06 1/4 6.4 0.488 12.4 6000 415 24000 1660 2.0 50 118
