Breathing Air Hose 420 BAR

Home Hose Breathing Air Hose 420 BAR

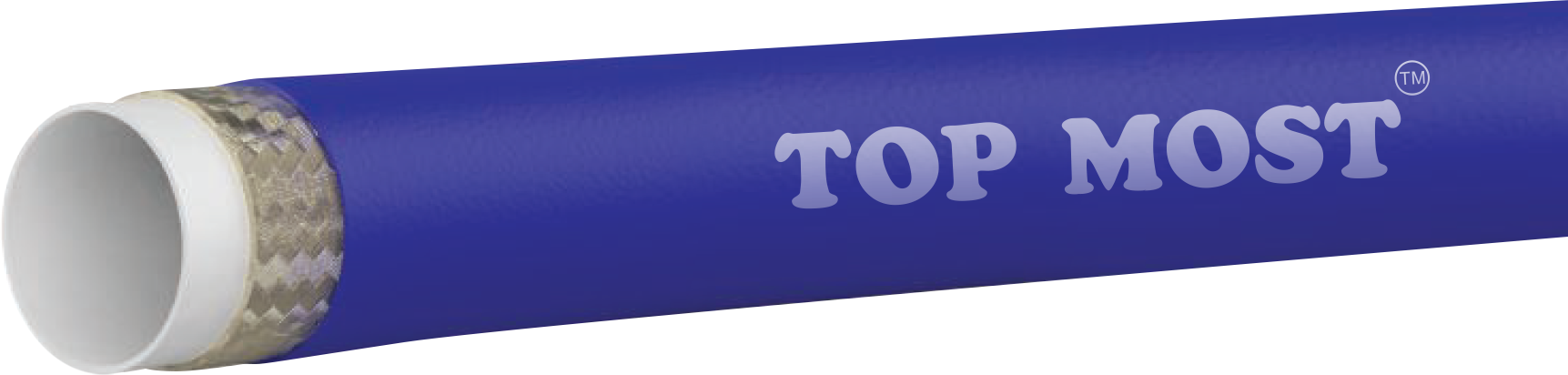

Breathing Air Hose 420 BAR


Applications:

Breathing apparatus for the blasting TUBE industry that is used to deliver breathing air in paint spray booths and self-contained Breathing apparatus for the blasting TUBE industry that is used to deliver breathing Poly Amide (PA 12), non-permeable and chemical resistant to solvents, paints and aggressive fluids air in paint spray booths and self-contained

Item Specifications

CODE
IINTERNAL DIAMETER
EXTERNAL DIAMETER
MIN.BEND RADIOUS
WORKING PRESSURE
BURST ORUSSURE
inch mm inch mm inch mm psi bar psi bar
TM 0613 1/4 6.6 0.46 11.7 1.6 40 6100 420 18250 1260
TM 0915 3/8 9.9 0.69 17.5 2.4 60 6100 420 18250 1260
TM 1321 1/2 13.1 0.83 21.1 3.0 76 6100 420 18250 1260
TM 1928 3/4 19 1.14 29 3.5 91 6100 420 18250 1260
Technical Specifications:
Tube

Poly Amide (PA 12), non-permeable and chemical resistant to solvents, paints and aggressive fluids

Reinforcement

Single or double braided layer of high tensile steel wire, ensuring strength and electrical conductivity

Cover

Blue or black color thermoplastic polyurethane (TPU), abrasion and weather resistance.

Branding

Steel Braided Breathing Hose W.P. 420 Bar / 6091 Psi

Standard Strenght

Rolls of 15m /50ft with NPS Female Fittings and spring guards at both ends
