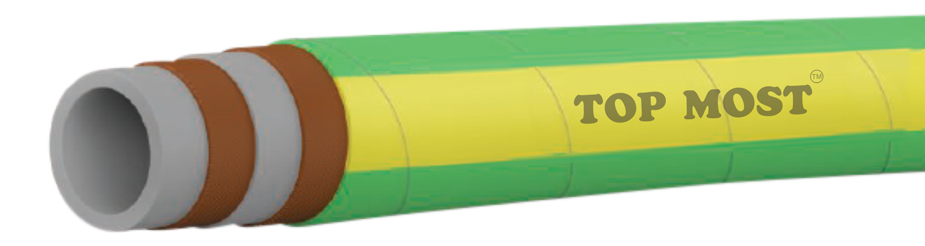

Carbon Free Hose 17.2 BAR

Applications:

Suitable for conveying cooling water for smelting furnaces like steel plants, glass works, foundries or any place the hose is subjected to high temperatures and splashes of red hot molten metals. It can be used to cool and protect high voltage electrical cables. Also used for applications requiring an electrically insulated hose.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		WORKING PRESSURE
	inch	mm	inch	mm	psi	bar
TM 1321	1/2"	13	0.85	21.6	250	17.2
TM 1931	3/4"	19.8	1.20	31	250	17.2
TM 2637	1"	26.2	1.45	37.5	250	17.2
TM 3245	1 1/4"	32.4	1.40	45.2	250	17.2
TM 3953	1 1/2"	39.2	2.10	53.6	250	17.2
TM 5166	2"	51.8	2.60	66	200	14
TM 6381	2 1/2"	63.5	3.20	81	200	14
TM 7693	3"	76.9	3.68	93.5	200	14

Features
Specifications

Features:

The hose is robust yet flexible, reinforced with a high strength synthetic cord. The cover is temperature resistant and withstands heat radiation.

Temperature Range:

-35°C to +120°C

-31°F to +248°F

TechnicalSpecifications:

Tube

White color EPDM rubber with insulating properties and smooth

Reinforcement

High strength synthetic cord

Cover

Non-conductive, heat resistant NBR rubber,
abrasion and ozone resistant

Working Temperature

-35°C to +120°C
-31°F to +248°F

Branding

Carbon Free Hose
W.P. 17.2 Bar / 250 Psi

Standard Length

Rolls of 10, 20, 40m / 50, 75, 100ft

Factor Of Safety

Factor of Safety 3:1

Special Properties

R>10^10 Ω/m (insulating)
