CHEMICAL SUCTION & DELIVERY HOSE - 12 BAR

Home Hose Chemical Suction & Delivery Hose - 12 Bar

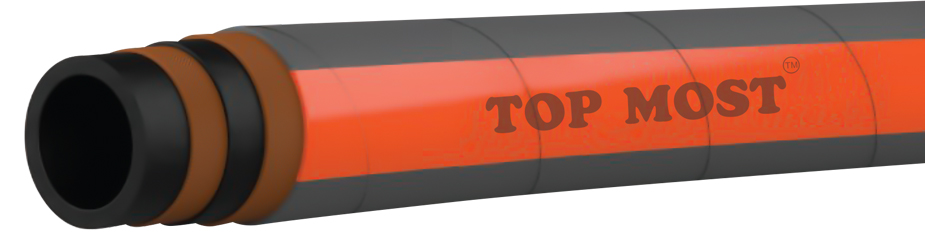

CHEMICAL SUCTION & DELIVERY HOSE - 12 BAR


Applications:

The Chemical S & D Hose used for Suction and discharge of wide range of light chemicals.

Item Specifications

CODE
INTERNAL DIAMETER
EXTERNAL DIAMETER
WORKING PRESSURE
WEIGHT
inch mm inch mm psi bar lbs/ft kg/m
TM 1323 1/2" 13 0.9 23 175 12 0.262 0.4
TM 1929 3/4" 19 1.14 29 175 12 0.36 0.55
TM 2537 1" 25 1.45 37 175 12 0.57 0.85
TM 3244 1 1/4" 32 1.7 44 175 12 0.97 1.45
TM 3856 1 1/2" 38 2.2 56 175 12 1.2 1.85
TM 5072 2" 50 2.83 72 175 12 1.98 2.95
TM 6385 2 1/2" 63.5 3.34 85 175 12 2.65 3.95
Technical Specifications:
Tube

Black Colour, EPDM Synthetic Rubber resistant to wide range of Industrial Chemicals

Optional

White color, Synthetic rubber with UHMW - PE liner.

Reinforcement

High Strength Synthetic Cord.

Cover

Black Colour, Synthetic rubber resistant to Ozone and weather and abrasion.

Electrical Resistance

Dissipates static electricity.

Working Temperature

-30 °C to +80 °C (depending on medium)
-22 °F to 176 °F


Standard/Approval

EN 12115 : 2011

Branding

Chemical Suction & Delivery Hose W.P 12 Bar / 175 Psi S.F. 3:1

Standard Length

Rolls of 10m, 20m & 40 m.

Also Available Upon Request

1. Different Diameters
2. Different working pressures
