TOPMOSTES SOLUTIONS PVT LTD

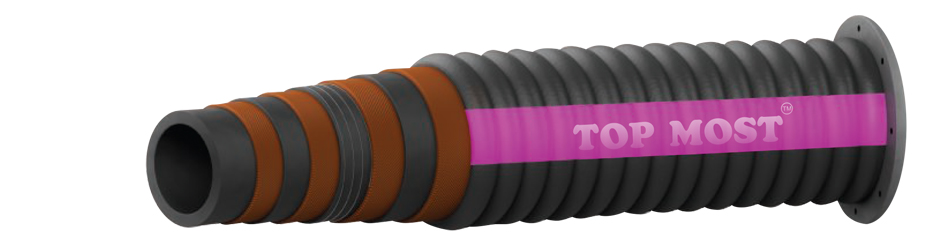

DREDGING HOSE 15 BAR

Applications:

The Dredging Hose range includes both suction and discharge dredging hose, dredge gimbal joint hoses and dredge sleeve. Excellent for heavy duty sand suction applications, slurries and abrasive materials.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		WORKING PRESSURE		WEIGHT		VACUUM BAR
	inch	mm	inch	mm	psi	bar	ibs/ft	kg/m	ibs/ft
TM 1013	4"	101.6	5.37	136.52	225	15	4.19	6.25	0.9
TM 1216	5"	127	6.68	169.86	225	15	6.5	9.68	0.9
TM 1519	6"	152.4	7.62	193.67	225	15	6.47	9.64	0.9
TM 2024	8"	203.2	9.62	244.47	225	15	13.78	20.51	0.9
TM 2530	10"	254	11.81	300.03	225	15	15.79	23.51	0.9

Features
Specifications

Features:

Built for suction and discharge applications, these high quality hoses are made with high tensile spring steel wire helix/heavy steel rings, designed to carter to heavy dynamic loads, assure maximum tensile strength and to absorb vibration and shock.

The Dredge Hose can be custom made to any size and is available with a broad array of flange types.

Temperature Range:

-35C to +70°C

-31°F to +158°F

TechnicalSpecifications:

Tube

Antistatic NR/PBR rubber, smooth, black, abrasion resistant

Reinforcement

Multiple plies of synthetic fabric with rubber encapsulated high tensile spring steel wire helix/ heavy steel rings

Cover

Antistatic NR/SBR rubber,
black, wrapped finish, abrasion and ozone resistance

Working Temperature

-35°C to +70°C
-31°F to +158°F

Factor Of Safety

Factor of Safety 3:1

Branding

Dredging Hose
W.P. 15 Bar / 225 Psi

Standard Length

Rolls of 10, 20, 40m / 50, 75, 100ft
