FOOD GRADE HOSE 12 BAR

Home Hose Food Grade Hose 12 BAR

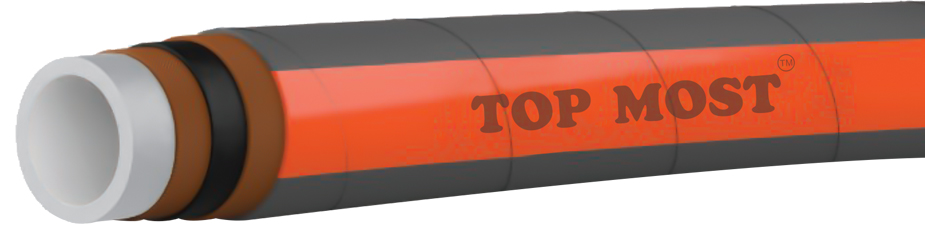

FOOD GRADE HOSE 12 BAR

Applications:

The Food Grade Hose Range includes discharge hoses for use in breweries and beverage industries. Suitable for use with alcohols, soft drinks and food.

Item Specifications

CODE
INTERNAL DIAMETER
EXTERNAL DIAMETER
WORKING PRESSURE
WEIGHT
inch mm inch mm psi bar ibs/ft kg/m
TM 1323 1/2" 13 0.9 23 175 12 0.262 0.4
TM 1929 3/4" 19 1.14 29 175 12 0.36 0.55
TM 2537 1" 25 1.45 37 175 12 0.57 0.85
TM 3248 1 1/4" 32 1.88 48 175 12 0.97 1.45
TM 3856 1 1/2" 38 2.2 56 175 12 1.2 1.85
TM 5072 2" 50 2.83 72 175 12 1.98 2.95
TM 6385 2 1/2" 63.5 3.34 85 175 12 2.65 3.95
Technical Specifications:
Tube

White EPDM food quality tube with high temperature resistance

Optional

White color Synthetic rubber with UHMPE liner

Reinforcement

High Strength Synthetic Card

Cover

SBR/NR or EPDM: Black,resistant to Ozone, weather and abrasion resistant

Working Temperature

-40°C to +80°C
-40°F to +176°F

Standards/Approval

BFR XXI: 2002 (KAT.2),WEIHENSTEPHAN

Branding

FOOD GRADE HOSE W.P. 12 BAR/175 PSI S.F 3:1

Standard Length

Rolls of 10m, 20mm & 40m

Also Available Upon Request

1. Different Diameters
2. Different working pressures
