HYDRAULIC JACK HOSE 700 BAR

Home Hose Hydraulic Jack Hose 700 Bar

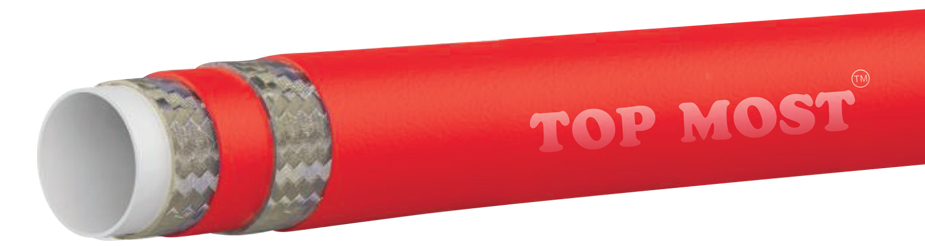

HYDRAULIC JACK HOSE 700 BAR

Applications:

Suitable for very high pressure hydraulic systems like jacks, cylinders, rescue equipment, mining equipment etc.

Item Specifications

CODE
INTERNAL DIAMETER
EXTERNAL DIAMETER
MINIMUM BEND RADIUS
WORKING PRESSURE
BURST PRESSURE
inch mm inch mm inch mm psi bar ibs/ft kg/m
TM 04 1/4" 6.6 0.49 12.4 1.6 40 10150 700 40610 2800
TM 06 3/8" 9.9 0.669 17 2.4 60 10150 700 40610 2800
TM 08 1/2" 13.1 0.866 22 3.0 77 10150 700 40610 2800
TechnicalSpecifications:
Tube

Inner core made with polyamide

Reinforcement

Two layers of steel wire braid ensuring high strength

Cover

Red colour thermoplastic polyurethane (TPU),abrasion and weather resistant

Working Temperature

-40°C to +90°C
-40°F to +194°F

Branding

Jack Hose W.P. 700 Bar S.F. 4:1

Standard Length

15m roll with NPS female fittings and spring guards at both ends

Exceeds

SAE J517

Also Available

Non conductive jack hose with two layers of Aramid fibre with orange outer cover is also available on request
