Mining HOSE - 10 BAR

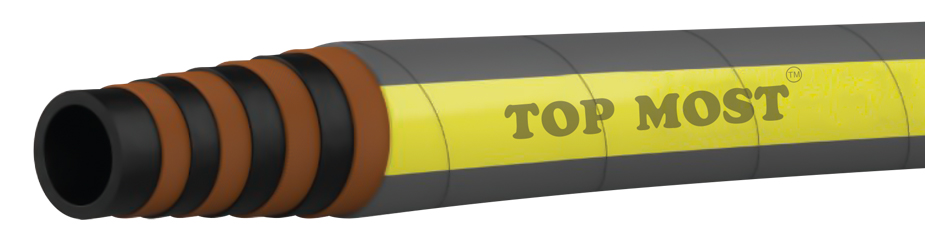

The Mining Hose is specially designed for slurry handling in the mining and industrial environments.

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		WORKING PRESSURE		WEIGHT
	inch	mm	inch	mm	bar	psi	ibs/ft	kg/m
TM 1321	1/2"	13	21.7	0.85	145	10	0.21	0.31
TM 1928	3/4"	19	28.1	1.10	145	10	0.34	0.50
TM 2535	1"	25	3.52	1.38	145	10	0.51	0.75
TM 3243	1 1/4"	32	43.8	1.72	145	10	0.95	1.41
TM 3849	1 1/2"	38	49.5	1.94	145	10	1.0	1.48
TM 5062	2"	50	62.7	2.46	101	7	1.45	2.15
TM 6375	2 1/2"	63.5	75.8	2.98	101	7	2.1	3.12
TM 7610	3"	76.2	88.1	3.46	101	7	2.6	3.86
TM 1011	4"	101.6	113.1	4.45	101	7	3.6	5.35

Black Colour, Synthetic Rubber blend with high abrasion resistance.

High strength synthetic cord with an embedded galvanized steel wire helix to ensure durability and strength.

Black Colour, Synthetic rubber with high resistance to Ozone, weather and abrasion.

–30°C to +80°C
–22°F to 212°F

ISO 6805:2015

Mining Hose W.P 10 Bar / 145 psi S.F. 4:1

Rolls of 10m, 20m & 40 m.

MINING HOSE - 10 BAR
