1 ARAMID BRAID + 1 STEEL BRAID HOSE – 550 BAR

Applications:

Medium pressure hoses for solvents and paints. Suitable for airless paint spray systems and fire-fighting foam systems up to 550 Bar / 8000 Psi.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		MINIMUM BEND RADIUS		WORKING PRESSURE		BURST PRESSURE
	inch	mm	inch	mm	inch	mm	psi	bar	ibs/ft	kg/m
TM 0612	1/4"	6.6	0.46	12.9	1.6	40	7975	550	23900	1650
TM 0916	3/8"	9.9	0.60	16.7	2.4	60	7975	550	23900	1650
TM 1321	1/2"	13.2	0.83	20.5	3.1	80	7975	550	23900	1650
TM 1928	3/4"	19	1.10	28.5	4.0	100	7975	550	23900	1650

Features
Specifications

Features:

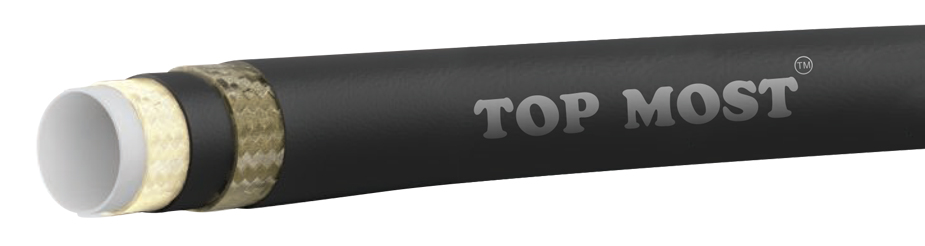

The hose comprises of a polyamide tube which is reinforced with brass-coated high tensile steel wire and aramid braid. The outer polyurethane cover provides excellent abrasion resistance.

Excellent flexibility with small bending radius.

Temperature Range:

–40°C to +90°C

–40°F to +194°F

Technical Specifications:

Tube

Poly Amide (PA 12), non-permeable and chemical resistant to solvents, paints and aggressive fluids.

Reinforcement

Single braided layer of high tensile steel wire and one aramid braid ensuring strength & electrical conductivity.

Cover

Blue color thermoplastic polyurethane (TPU), blue color, abrasion and weather resistant.

Working Temperature

–40°C to +90°C
–40°F to +194°F

Branding

High Pressure Paint Spray Hose W.P. 550 Bar / 8000 Psi

Standard Length

Rolls of 15m / 50ft with NPS female fittings and spring guards at both ends
