1 WIRE PAINT SPRAY HOSE - 420 BAR

Applications:

Medium pressure hoses for solvents and paints. Suitable for airless paint spray systems up to 420 Bar / 6091 Psi.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		MINIMUM BEND RADIUS		WORKING PRESSURE		BURST PRESSURE
	inch	mm	inch	mm	inch	mm	psi	bar	ibs/ft	kg/m
TM 0613	1/4"	6.6	0.46	11.7	1.6	40	6100	420	18250	1260
TM 0915	3/8"	9.9	0.60	15.1	2.4	60	5075	350	15225	1050
TM 1321	1/2"	13.1	0.72	18.3	3.0	76	5075	350	15225	1050
TM 1928	3/4"	19	1.13	28.11	3.5	91	5075	350	15225	1050

Features
Specifications

Features:

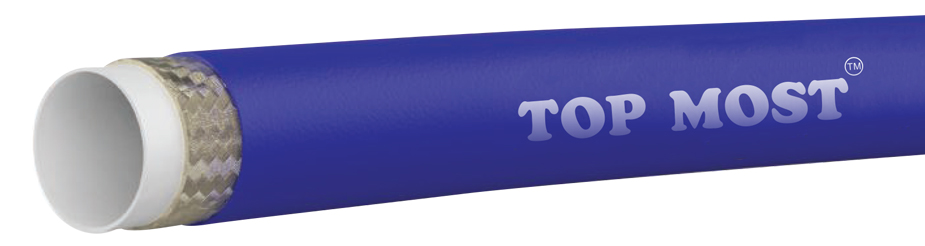

Excellent flexibility with small bending radius. The hose comprises of a poly amide tube which is reinforced with brass coated, high tensile steel wire braid. The outer polyurethane cover provides excellent abrasion resistance.

Temperature Range:

–40°C to +90°C

–40°F to +194°F

Technical Specifications:

Tube

Poly Amide (PA 12), non-permeable and chemical resistant to solvents, paints and aggressive fluids.

Reinforcement

Single braided layer of high tensile steel wire, ensuring strength and electrical conductivity.

Cover

Blue color thermoplastic polyurethane (TPU), abrasion and weather resistant.

Working Temperature

–40°C to +90°C
–40°F to +194°F

Branding

Steel Braided Paint Spray Hose W.P. 420 Bar / 6091 Psi

Also Available Upon Request

Rolls of 15m/50ft with NPS female fittigs and sprinf guards at both ends.
