SAE 100 R7 HOSE 210 BAR

Home Hose Sae 100 R7 Hose 210 Bar

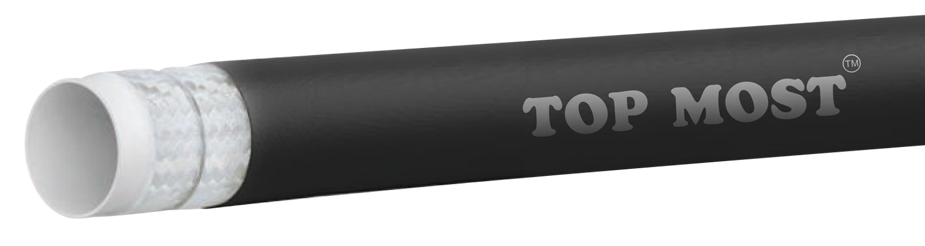

SAE 100 R7 HOSE 210 BAR

Applications:

Suitable for medium pressure hydraulic systems like hydraulic lifts, earthmoving equipments, agricultural machinery, material handling equipments etc.

Item Specifications

CODE
INTERNAL DIAMETER
EXTERNAL DIAMETER
MINIMUM BEND RADIUS
WORKING PRESSURE
BURST PRESSURE
inch mm inch mm inch mm psi bar ibs/ft kg/m
TM 04 1/4" 6.6 0.49 12.4 1.3 40 3000 210 12150 840
TM 06 3/8" 9.9 0.62 15.74 2.2 60 2750 190 11000 760
TM 08 1/2" 13.2 0.76 19.30 2.7 70 2500 170 9975 688
TM 10 3/4" 19 1.02 26 3.1 80 2000 140 8100 560
TechnicalSpecifications:
Tube

Thermoplastic Elastomer

Reinforcement

One or multiple braids of polyester yarn

Cover

Thermoplastic Polyurethane (TPU),
black color, abrasion and weather resistant

Working Temperature

-40°C to +90°C
-40°F to +194°F

Branding

SAE 100 R7 Hose S.F. 4:1

Standard Length

Rolls of 50ft with NPS female fittings and spring guards at both ends

Exceeds

SAE 100R7 Specifications

Also Available

Non-conductive SAE 100 R7 hose
