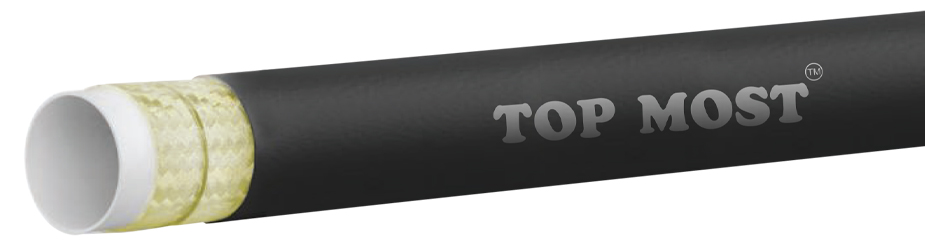

SAE 100 R8 Hose 345 BAR

Home Hose Sae 100 R8 Hose 345 Bar

SAE 100 R8 Hose 345 BAR

Applications:

Suitable for high pressure hydraulic systems like hydraulic lifts, earthmoving equipments, agricultural machinery, material handling equipments, construction machinery etc.

Item Specifications

CODE
INTERNAL DIAMETER
EXTERNAL DIAMETER
MINIMUM BEND RADIUS
WORKING PRESSURE
BURST PRESSURE
inch mm inch mm inch mm psi bar ibs/ft kg/m
TM 804 1/4" 6.6 0.49 12.4 1.3 40 5000 345 2000 1380
TM 806 3/8" 9.9 0.62 15.74 2.2 60 4500 310 17900 1240
TM 808 1/2" 13.1 0.76 19.30 2.7 70 4000 275 15900 1100
TM 810 3/4" 19 1.02 26 3.1 80 3500 240 13900 960
TechnicalSpecifications:
Tube

Thermoplastic Elastomer

Reinforcement

One braid of aramid yarn

Cover

Thermoplastic Polyurethane (TPU),
black color, abrasion and weather resistant

Working Temperature

-40°C to +90°C
-40°F to +194°F

Branding

SAE 100 R8 Hose S.F. 4:1

Standard Length

Rolls of 50ft with NPS female fittings and spring guards at both ends

Exceeds

SAE 100R8 specifications

Also Available

Non-conductive SAE 100 R8 hose
