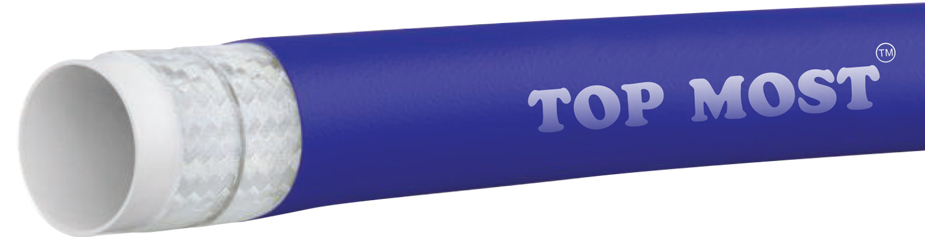

TEXTILE BRAIDED PAINT SPRAY HOSE - 225 BAR

Applications:

Suitable for applications requiring chemical resistance to solvents and aggressive paints.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		MINIMUM BEND RADIUS		WORKING PRESSURE		BURST PRESSURE
	inch	mm	inch	mm	inch	mm	psi	bar	ibs/ft	kg/m
TM 0614	1/4”	6.6	0.57	14.5	4	100	3263	225	9800	675
TM 0918	3/8”	9.9	0.72	18.5	5.1	127	3263	225	9800	675
TM 1388	1/2”	13.1	0.88	22	7.1	178	3263	225	9800	675

Features
Specifications

Features:

Excellent flexibility with a small bending radius. The hose comprises of a polyamide tube which is reinforced with high tensile textile wire braid. The Outer polyurethane cover provides excellent abrasion resistance.

Temperature Range:

-40°C to 100°C

-40°F to 212°F

Technical Specifications:

Tube

Poly Amide

Reinforcement

One or more braids of Aramid and polyester yarn.

Cover

Thermoplastic Polyurethane (TPU), blue color, abrasion and weather resistant.

Working Temperature

-40°C to 100°C
-40°F to 212°F

Branding

Textile Braided Paint Spray Hose W.P 225 Bar / 3263 psi

Standard Length

Rolls of 15m, 20m.

Also Available Upon Request

Different Diameters
Different working pressures
