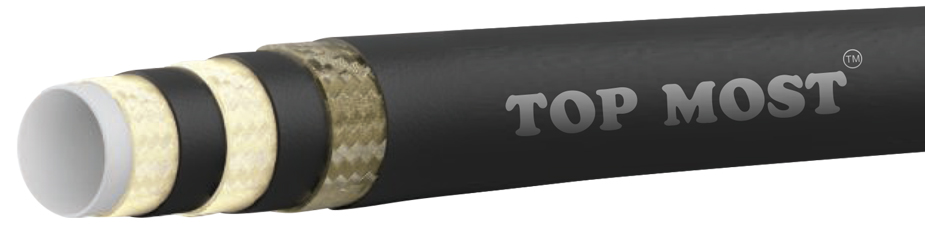

2 ARAMID BRAID + 1 STEEL BRAID HOSE – 600 BAR

Applications:

The thermoplastic hose is a high-pressure hose. Used for passive fire protection (PFP) coatings and spray high viscosity paints.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		MINIMUM BEND RADIUS		WORKING PRESSURE		BURST PRESSURE
	inch	mm	inch	mm	inch	mm	psi	bar	ibs/ft	kg/m
TM 0612	1/4"	6.6	0.46	12.9	1.6	40	8700	600	26100	1800
TM 0916	3/8"	9.9	0.60	16.67	2.4	60	8700	600	26100	1800
TM 1321	1/2"	13.7	0.83	20.50	3.1	80	8700	600	26100	1800
TM 1928	3/4"	19	1.10	28.5	4.0	100	8700	600	26100	1800

Features
Specifications

Temperature Range:

–40°C to +90°C

–40°F to +194°F

Technical Specifications:

Tube

Poly Amide

Reinforcement

Multiple braids of Aramid and steel wire braid ensuring high strength.

Cover

Blue color thermoplastic polyurethane (TPU). Blue, Red, or Black color, abrasion and weather resistant.

Working Temperature

–40°C to +90°C
–40°F to +194°F

Branding

High pressure paint spray hose W.P. 600 Bar / 8700 Psi

Also Available Upon Request

Rolls of 15m / 50ft with NPS female fittings and spring guards at both ends
