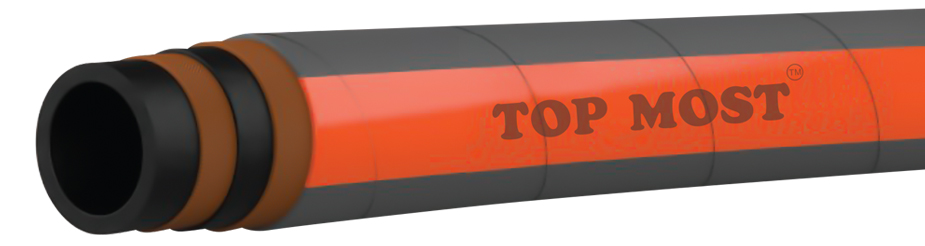

2 PLY BLAST HOSE 12 BAR

Suitable for conveying all commonly used abrasive material for blasting such as Steel Shot, Steel Grit, Garnet, Copper Slag, Coal Slag, Aluminum Oxide, Glass Beads etc.

Item Specifications

CODE	INTERNAL DIAMETER		EXTERNAL DIAMETER		WORKING PRESSURE		WEIGHT
	inch	mm	inch	mm	bar	psi	ibs/ft	kg/m
TM 2P 1327	1/2"	13	1.08	27	175	12	0.36	0.55
TM 2P 1933	3/4"	19	1.30	33	175	12	0.48	0.72
TM 2P 2539	1"	25	1.57	39	175	12	0.6	0.9
TM 2P 3248	1 1/4"	32	1.89	48	175	12	0.77	1.16
TM 2P 3854	1 1/2"	38	2.13	54	175	12	0.98	1.46
TM 2P 5175	2"	51	2.68	75	175	12	1.43	2.13
TM 2P 6381	2 1/2"	63.5	3.19	81	175	12	1.81	2.7

Features
Specifications

Features:

2 Ply Blast Hose is reinforced with strong synthetic for maximum protection against abrasion with a thick tube for excellent resistance to wear in conditions that exist in abrasive blasting environments. Designed to be durable and long-lasting.

Static Conductivity for Safety

Super Blast Hose is built with a static conductive tube compound that dissipates static electricity.

Temperature Range:

-35°C to +70°C

-31°F to +158°F

TechnicalSpecifications:

Tube

Antistatic NR/PBR rubber, smooth, black, abrasion resistant

Reinforcement

High strength polyester/rayon cord

Cover

Antistatic NR/SBR rubber, black, wrapped finish, abrasion and weather resistant

Working Temperature

-35°C to +70°C
-31°F to +158°F

Factor of Safety

Factor of Safety 3:1

Branding

Super Blast Hose W.P. 12 Bar / 175 Psi

Standard Length

Rolls of 10, 20, 40m / 50, 75, 100ft

Special Properties

Abrasion resistance of tube 50 ± 5mm3 according to DIN ISO 4649:2006

Standard Meets

EXCEEDS DIN EN ISO 3861:2010-04
